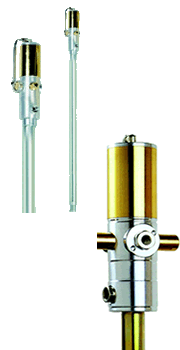

Air-Operated Pumps
These Air-Operated Pumps are renowned for their high efficiency as well as their extremely low noise levels.
Outstanding reliability due to high quality Materials, Seals and Special Change-Over Valve
The Air-Operated Pumps cover the whole range of required pressures and may be adapted to customised products such as various Containers, Hose Lines etc.
Recommendation:
- Never let the Pump System and especially not the Suction Tube rest on the ground. Keep them away from dirt, which will avoid damage to the Pump and expensive repairs.
| |
Art.36094 |
Art.36073 |
Art.36027 |
| Compression ratio |
5:1 |
5:1 |
5:1 |
| Air pressure |
0.3—0.8 MPa |
0.3—0.8 MPa |
0.3—0.8 MPa |
| Max. air consumption |
240Lt/Min |
240Lt/Min |
240Lt/Min |
| Delivery |
18Lt/Min |
18Lt/Min |
18Lt/Min |
| Length suction tube(mm) |
940 |
730 |
270 |
| Air inlet connection |
BSF 1/4" |
BSF 1/4" |
BSF 1/4" |
| Fluid Outlet Thread Size |
BSF 1/2 in |
BSF 1/2 in |
BSF 1/2 in |
Note: For longer pump life and efficiency, we recommend the use of dried air or an air filter. As with any pneumatic equipment, you can expect longer trouble free operation with the use of clean, dry air. The use of an air drier, separator, or minimally an air filter, is advantageous. See our selection of air regulators, separators (filter) and dryers.
|
